Best reception – flexibly applicable
The flat antenna is the ideal solution to receive satellite television in a space-saving and unobtrusive way. Its flat, compact and easy to install design makes the antenna (almost) invisible. The robust and stable housing protects the high-quality electronics inside from the effects of the weather. The reception performance is equivalent to a conventional 60 cm parabolic dishand is perfectly suited for mounting on the balcony or directly on the house wall.
Simply replace the LNB
A universal LNB for 1, 2 or 4 users is included in the scope of delivery. In contrast to conventional flat antennas, it is not necessary to replace the complete unit in the event of a defect, but only the LNB itself, which saves you costs. If necessary, the LNB can be replaced with just a few simple steps. So you can also upgrade your system for more participants at a reasonable price.
Various mounting options

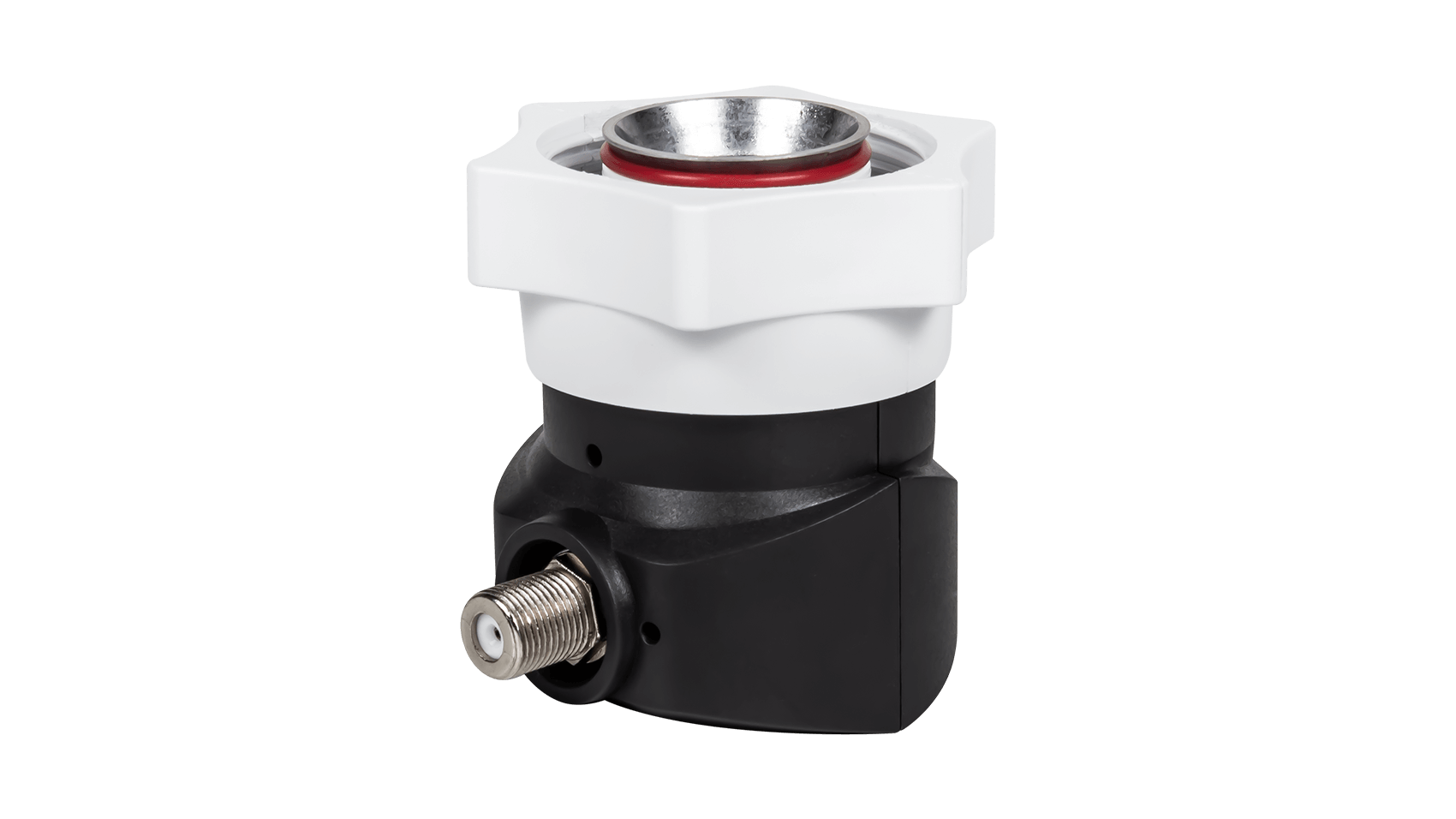

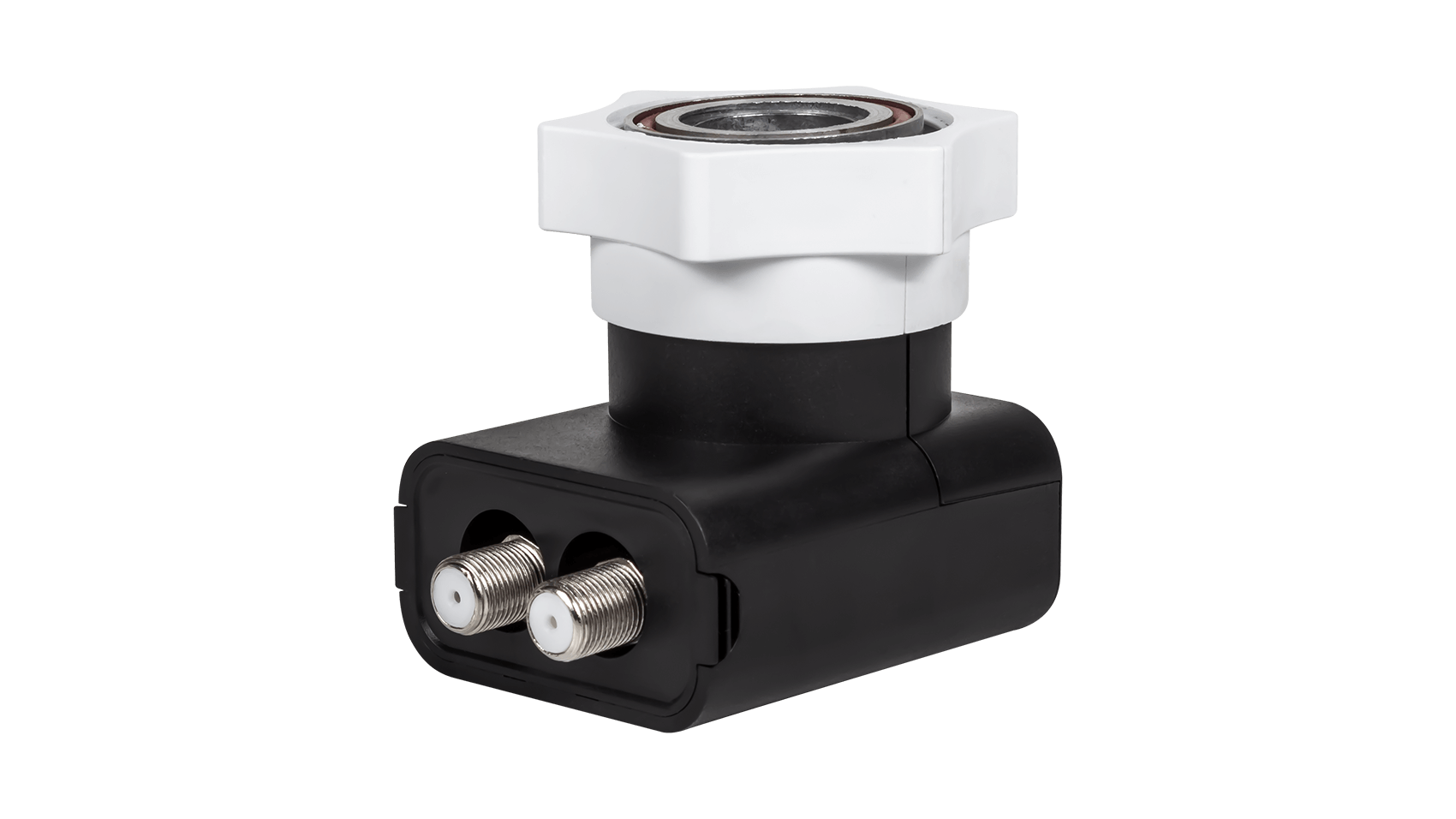

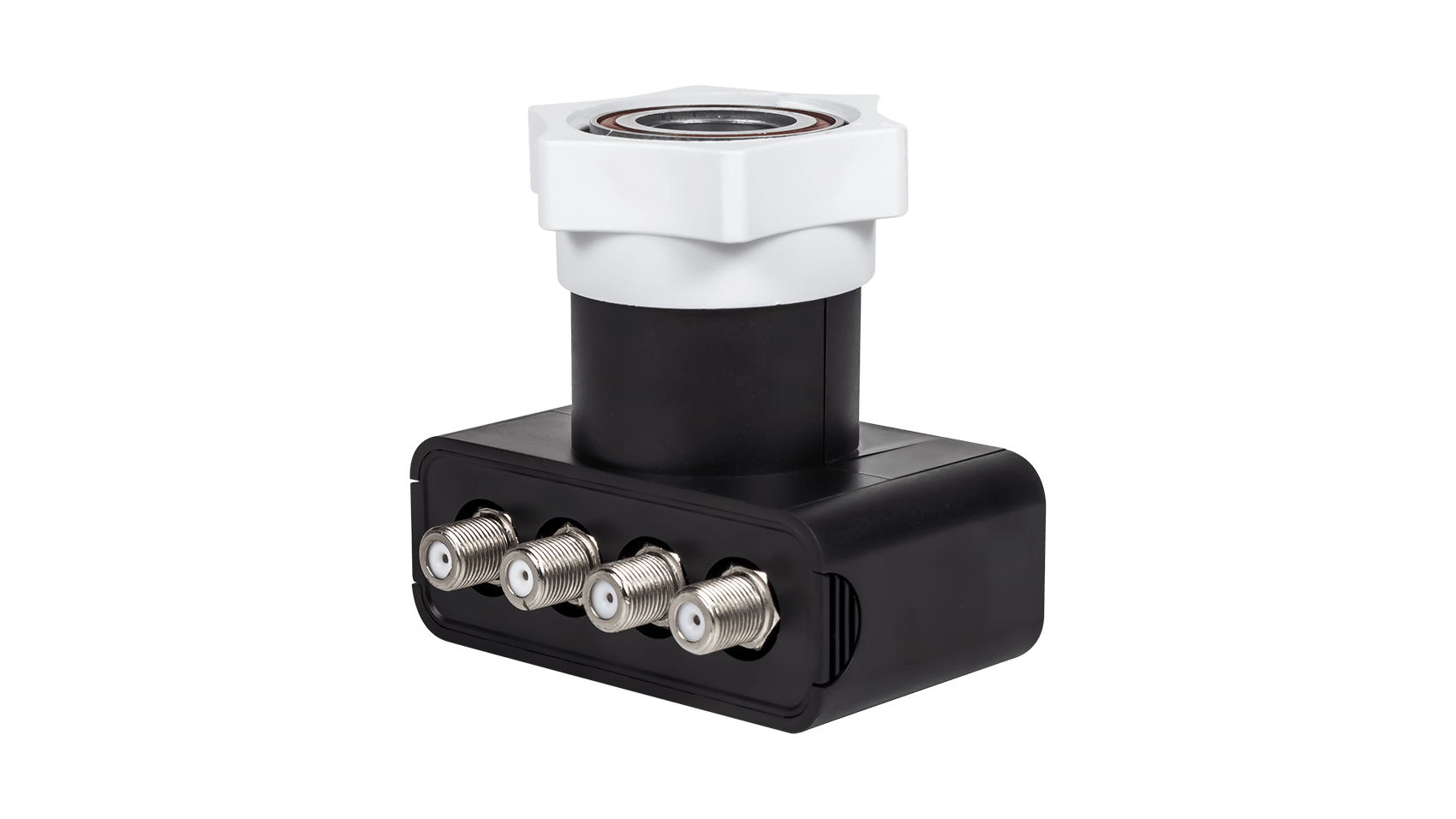

LNBs for easy replacement
Technical data
- Input frequency: 10.7 - 12.75 GHz
- Polarization: Linear (vertical / horizontal)
- antenna gain: 33 dBi@ 12.75 GHz
- LNB output: 1, 2 or 4
- LNB output frequency: 950 - 1,950 MHz / 1,100 - 2,150 MHz
- L.O. Frequency: 9.75 GHz / 10.6 GHz
- LNB gain: min. 55 dB / max. 66 dB
- Gain Flatness: 5 dB
- Power supply: 12 - 14 V DC (V) / 16 - 19 V DC (H)
- Power consumption: max. 160 mA
- Operating temperature: -20° C - +60° C
- Storage temperature: -40° C - +80° C
Connections
- F connector (1, 2, or 4)
Scope of delivery
- Flat antenna
- LNB
- Wall mounting
- Mast / balcony mount
- Window mount
- Tool
- Screw set
- Compass
- User manual
Product
- Width: 525 mm
- Height: 290 mm
- Depth: 68 mm (without LNB)
- Weight: 3,6 kg (net)
Box
- Width: 910 mm
- Height: 670 mm
- Depth: 145 mm
- Weight: 5,9 kg (gross)
Miscellaneous
Flat antenna D1 Profi-Line
- Art-No.: 200210
- EAN: 4046173107739
Flat antenna D2 Profi-Line
- Art-No.: 200211
- EAN: 4046173107746
Flat antenna D4 Profi-Line
- Art-No.: 200212
- EAN: 4046173107753
