Razor sharp with Full HD resolution
To watch TV programmes in the best quality, a detailed picture reproduction with Full HD resolution of up to 1080p is provided. The familiar simple operation of the Megasat receivers has also proven itself in this model.
Two USB ports for media playback
The two USB ports allow easy playback of picture and music files via external storage media such as USB stick or external hard drive. So you can easily play back your holiday pictures or MP3 collection on the TV. Future Firmwareupdates can also be easily installed via the interface.

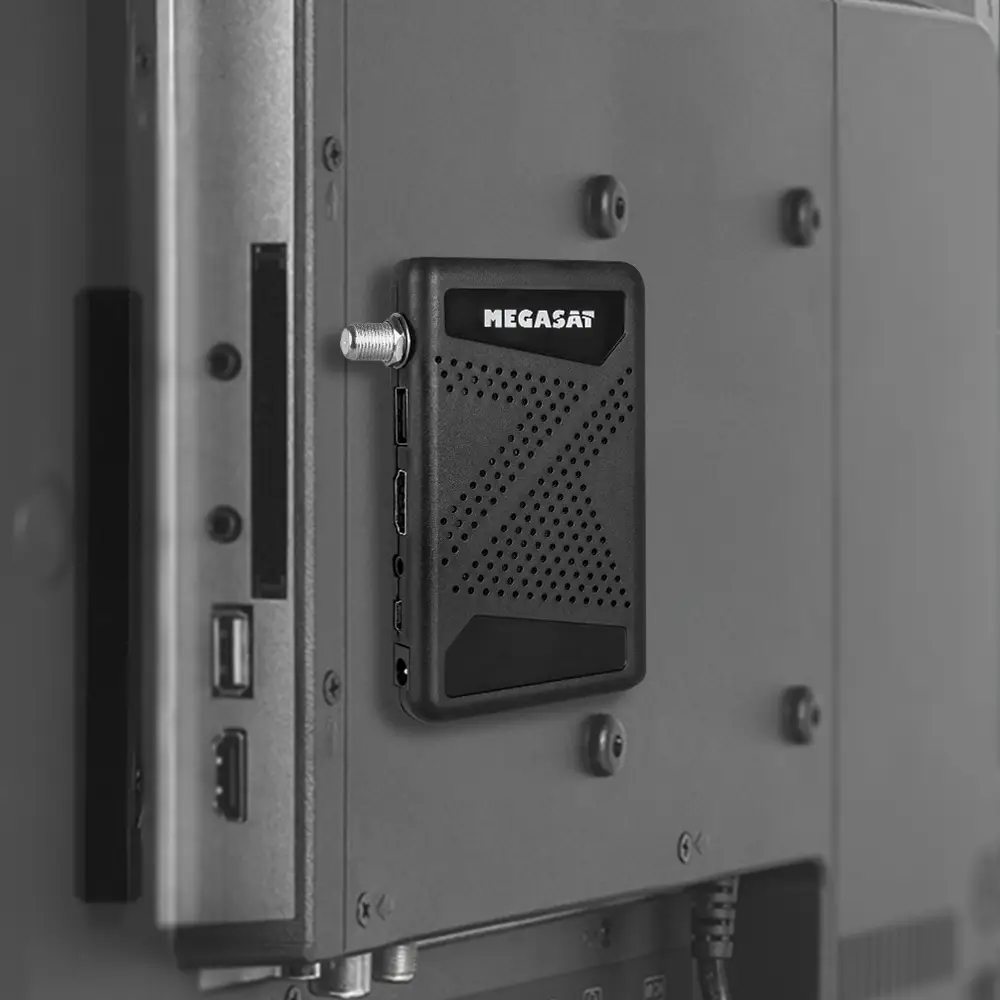

Concealed mounting behind the TV
The Megasat HD Stick 310 V3 is the ideal device when space is limited. Due to its compact dimensions, the receiver can be mounted directly behind the television set. The Velcro tape included in the scope of delivery is easy to attach and ensures quick installation. With the included Wall mountingone, the receiver can also be attached to a wall unit or shelf. In order to transmit the remote control signals without interference even when the unit is hidden, an infrared sensor is included in the delivery. The infrared sensor also offers an integrated display to keep an eye on the current programme position at all times.
Technical data
- DVB-S/DVB-S2 (MPEG-2 / MPEG-4 / H.264)
- Reception of all free HD channels
- Resolution: 576i to 1080p
- Aspect ratios: 4:3,16:9
- DiSEqC 1.0 / 1.1/ 1.2 / USALS
- Unicable I & II (EN 50494 / EN 50607)
- AAC-LC audio support
- Media playback via USB connection
- Infrared sensor with integrated display
- Multilingual menu in true colours (32 bit)
- 7 days EPG (Electronic Program Guide)
- 8 Favourites Groups
- Parental lock
- Multilingual audio and subtitle support
- Power supply: AC 100~240 V, DC 12 V 1A
- Consumption in operation: max. 12 Watt
- Consumption in standby:
Connections
- 1x HDMI
- 1x audio / video (3.5 mm jack)
- 2x USB 2.0
- 1x infrared sensor
- 1x RS 232 (3.5 mm jack)
- 1x power supply
- 1x LNB input
Scope of delivery
- Megasat HD Stick 310 V3
- Remote control
- Batteries
- Infrared sensor
- 230/12 Volt power supply unit
- Mounting
- Velcro tape
- HDMI cables
- User manual
Product
- Width: 108 mm
- Height: 18mm
- Depth: 65 mm
- Gewicht: 57 g (netto)
Box
- Width: 195 mm
- Height: 50mm
- Depth: 165 mm
- Weight: 380 g
Miscellaneous
- Art-No.: 0200997
- EAN: 4046173107333
